Quick Clamp shaft clamping collars
Clampmax quick-release connector
Simple and time-saving new adjustment on the shaft - this is one of the strengths of Quick Clamp shaft collards. They are designed to deliver speed and flexibility while reducing down time. They have an integral handle that sits flush with the outside diameter when fully installed and can be actuated without tools, allowing for quick installation and adjustments.
Product range
- For shaft diameters from 6 to 75 mm
- Clamping and loosening without tools
- Made of high-strength aluminium
- For axial loads up to 1,380 N
> Impressive quality features
Shaft collars are used to secure components on shafts or as an axial stop. To provide for optimum performance, our Clampmax clamping rings are distinguished by special features. So, special procedures are used in the manufacture of rings to optimise the benefits for the user. For example, the bore of the Clampmax is faced so as to be exactly orthogonal to the front side of the clamping collar. This is crucial when using clamping collars as storage areas, as a mechanical stop or to install other components. In combination with high-quality screws DIN 912 12.9, Clampmax offers impressive, practice-relevant performance features.
MQCL

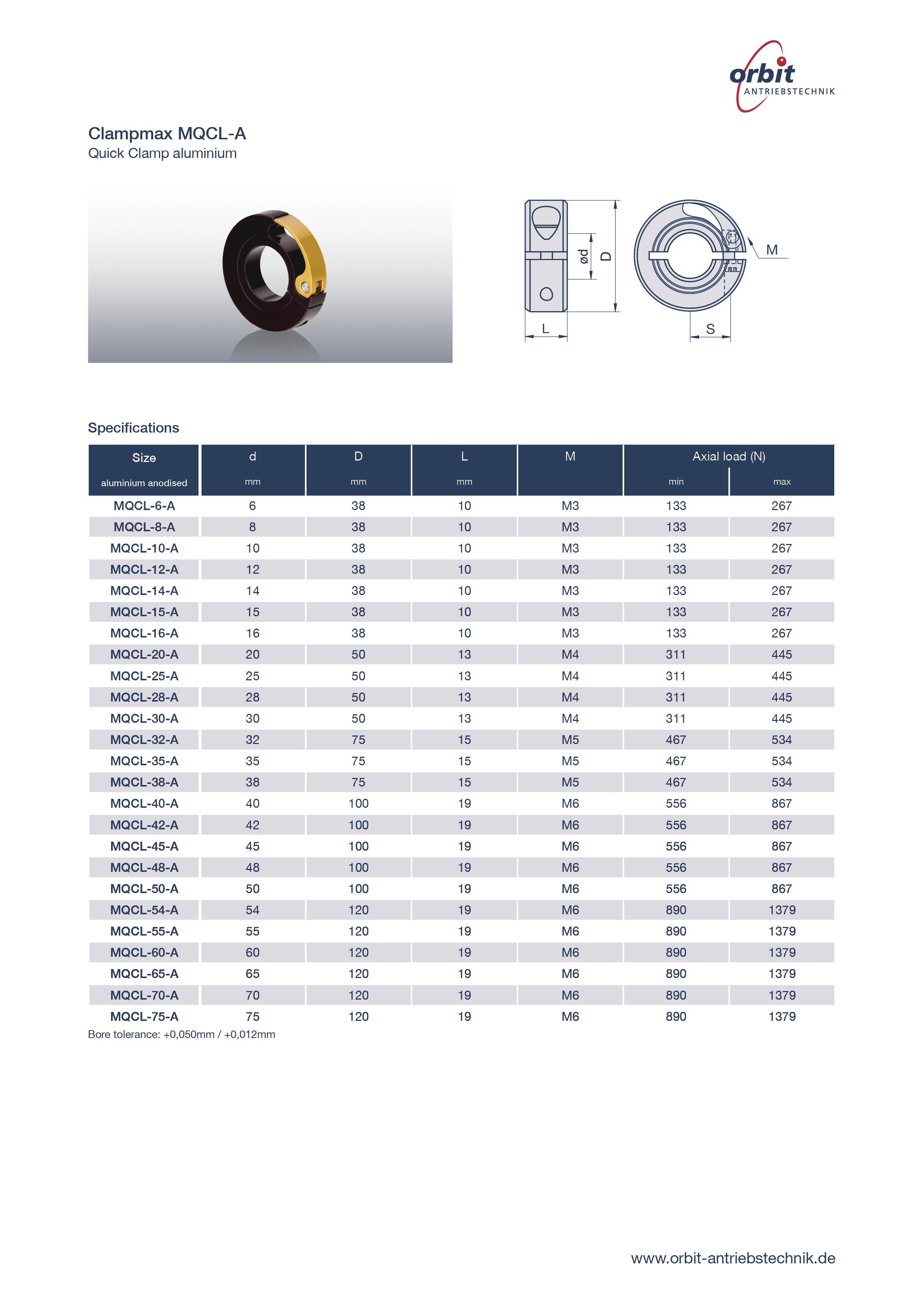

| | Zoom Datasheet |
|---|
