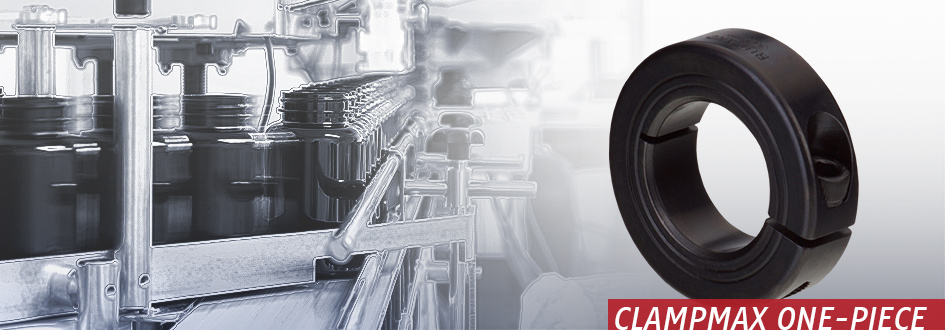

One-piece shaft clamping collars
One-piece shaft clamping collars
High retention forces - these depend on whether components are securely fixed. Absolutely precise manufacture along with high quality screws ensure the shaft perfect containment as well as the optimal distribution of the clamping forces. Available in a variety of materials, they are ideal for almost any application.
Product range
- For shaft diameters from 3 to 80 mm
- Different materials and surface coatings
- For even higher retention forces in a wider version with 2 set screws
> Impressive quality features
Shaft collars are used to secure components on shafts or as an axial stop. To provide for optimum performance, our Clampmax clamping rings are distinguished by special features. So, special procedures are used in the manufacture of shaft collars to optimise the benefits for the user. For example, the bore of the Clampmax is faced so as to be exactly orthogonal to the front side of the clamping collar. This is crucial when using clamping collars as storage areas, as a mechanical stop or to install other components. In combination with high-quality screws DIN 912 12.9, Clampmax offers impressive, practice-relevant performance features.
MCL MCL

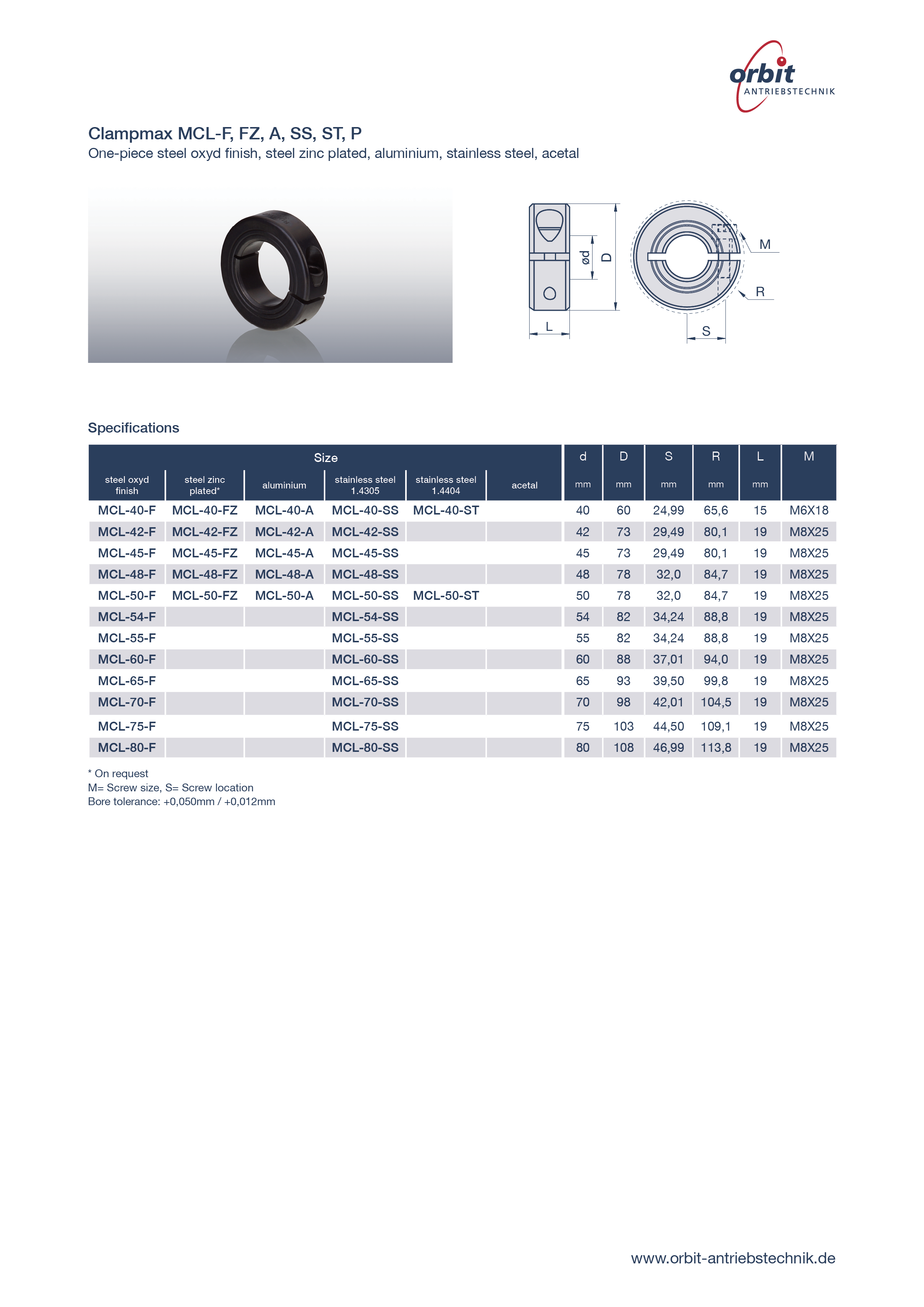

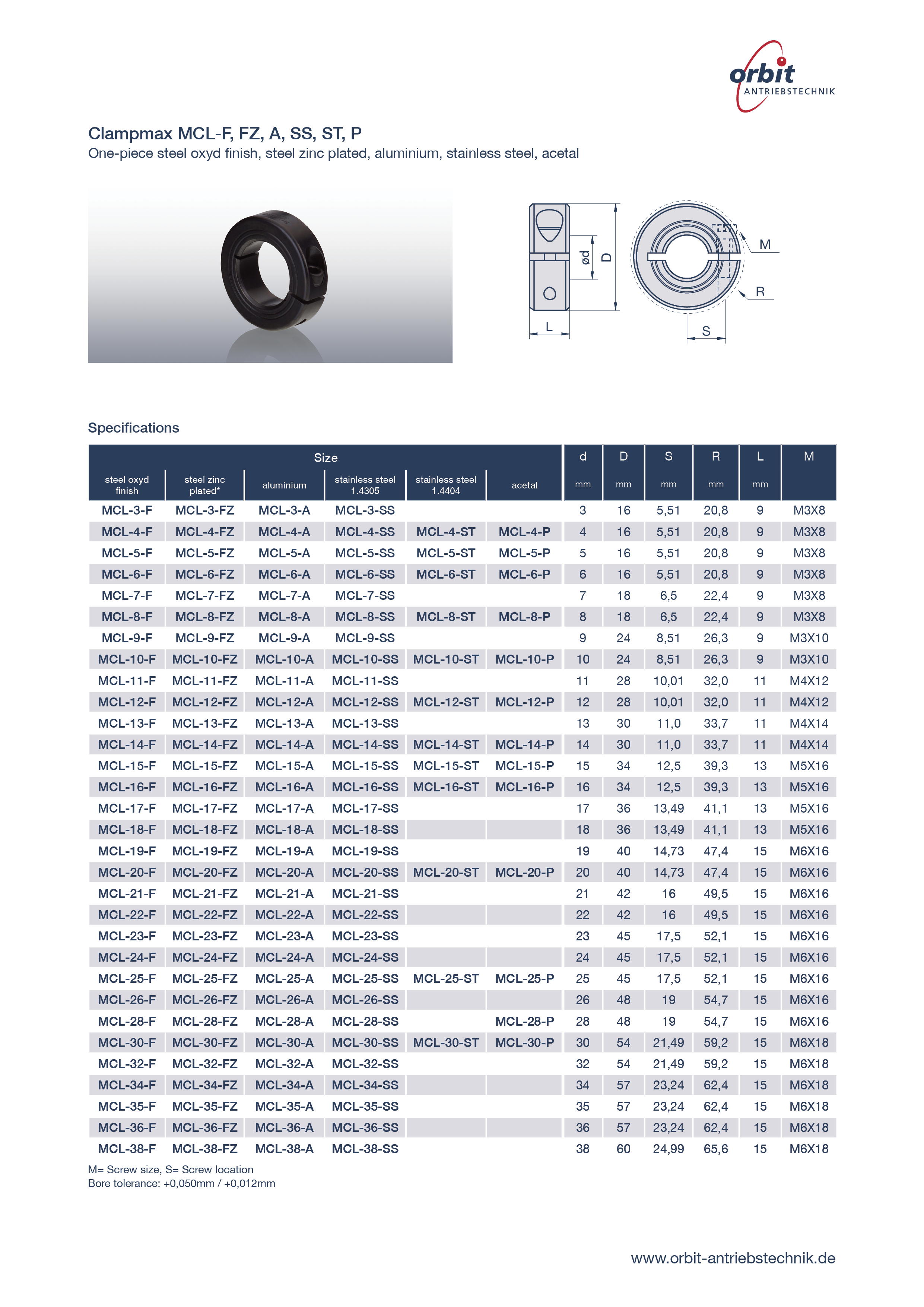

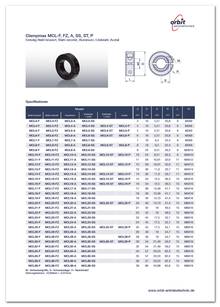

| | Zoom Datasheet | | Zoom Datasheet |
|---|
