One-piece Torqmax MCLX, MCLC

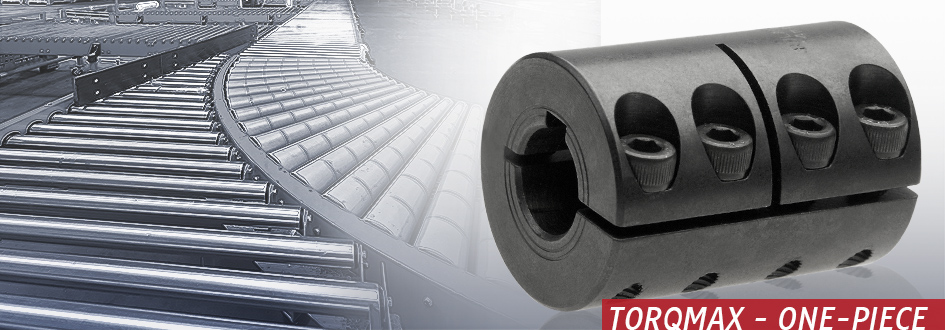

One-piece Torqmax

The standard version for a precise and force-fit connection of aligned shafts. It transmits high torques with absolute zero backlash. Available with or without keyway in carbon steel, aluminium and stainless steel.

Product range

  • For shaft diameters up to 50 mm
  • Materials: Aluminium, burnished and stainless steel
  • Precisely honed bores
  • High quality screws DIN 912 Güte 12.9 with additional screws locks
  • Also available with groove
  • Torques up to 2,250 Nm

> Impressive quality features

The Torqmax coupling has impressive quality features. Its bores are precisely honed in a final working process. As a result, the Torqmax coupling ensures highest surface quality and standards in terms of dimensional tolerance and geometrical accuracy. The high-quality screws DIN 912, quality 12.9, are treated with a special Nypatch® process. Nypatch® is a proprietary process that involves depositing a 360 degree coating of Nylon on several threads of the socket head cap screws. This coating is designed to reduce screw vibration, which can cause the screws to loosen and torque transmission ability to diminish during the course of normal use. The Nylon also provides the necessary dissimilar material to reduce galling of the screw threads in stainless steel rigid couplings.

> Application areas

  • Conveying and handling systems
  • Wood working machinery
  • Packaging machines
  • Pump drives
  • Shaft extensions and more



 MCLX/MCLC-F                        MCLX/MCLC-SS                      MCLX-A

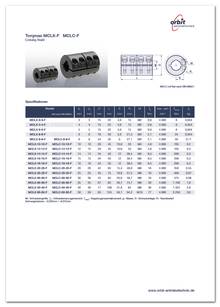

Datasheet Torqmax one-piece MCLX/MCLC-F

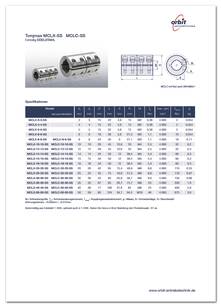

Datasheet Torqmax one-piece MCLX/MCLC-SS

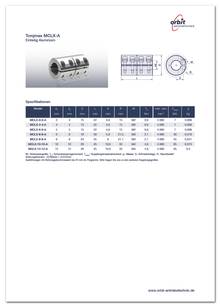

Datasheet Torqmax one-piece MCLX/MCLC-A
