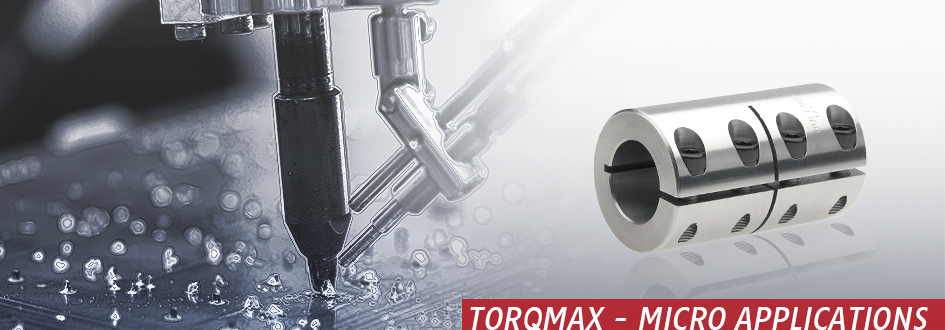

The Torqmax coupling - for micro applications

The Torqmax coupling - for micro applications

In medical and laboratory technologies, precision mechanics, or micro dosing pumps - everywhere in these areas there is a need for connecting shafts with extremely small diameters. Rigid couplings with 3-to-5-mm bore diameters are the solution here. The Torqmax coupling for micro applications is in aluminium as well as carbon or stainless steel.

Produkt range

  • For shaft diameters up to 3 mm
  • Minimised outer diameter up to 15 mm
  • Materials: Aluminium; burnished and stainless steel
  • Precisely honed bores
  • High quality screws with additional screws locks

> Impressive quality features

The Torqmax coupling has impressive quality features. Its bores are precisely honed in a final working process. As a result, the Torqmax coupling ensures highest surface quality and standards in terms of dimensional tolerance and geometrical accuracy. The high-quality screws DIN 912, quality 12.9, are treated with a special Nypatch® process. Nypatch® is a proprietary process that involves depositing a 360 degree coating of Nylon on several threads of the socket head cap screws. This coating is designed to reduce screw vibration, which can cause the screws to loosen and torque transmission ability to diminish during the course of normal use. The Nylon also provides the necessary dissimilar material to reduce galling of the screw threads in stainless steel rigid couplings.

> Application areas

  • Apparatus engineering
  • Medical technology
  • Laboratory techniques
  • Precision engineering
  • Optical instruments



 MCLX

Datasheet Torqmax micro MCLX



 Zoom Datasheet
